Multi-Device Testing

This guide explains how to create automation flows that target multiple devices, allowing you to test interactions between devices or run different steps on different devices within the same flow.

Overview​

Multi-device testing enables you to:

  • Execute specific steps on specific devices
  • Test cross-device interactions (e.g., messaging between two phones)
  • Run parallel validations across different device configurations
  • Create comprehensive end-to-end tests involving multiple users/devices

Prerequisites​

Before using multi-device features, ensure you have:

  • At least two Android devices connected via ADB
  • All devices visible in the device management panel
  • Each device properly configured and accessible

Setting Up Multi-Device Flows​

Step 1: Connect Multiple Devices​

  1. Connect your Android devices via USB or ADB wireless
  2. Verify all devices appear in the connected devices list
  3. Note each device's name/ID for reference

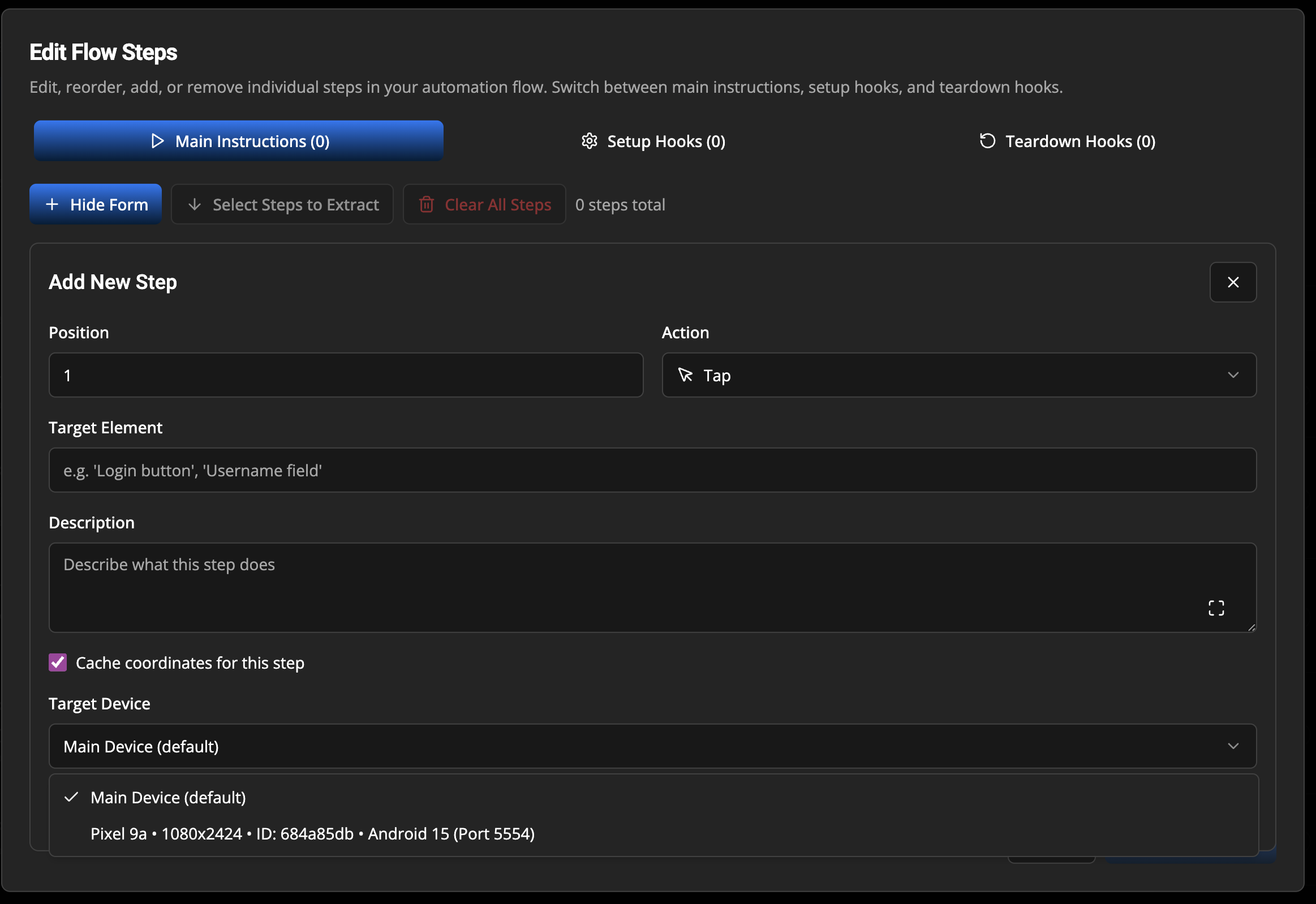

Device Selection

Step 2: Assign a Main Device to the Flow​

When creating or editing a flow:

  1. Navigate to the flow's settings
  2. Select the primary Target Device for the flow
  3. This becomes the "main device" that steps use by default

Device Flow Management

Step 3: Target Specific Devices Per Step​

In the Flow Steps Editor, each step has a Target Device dropdown:

  1. Click Edit on any step
  2. Find the Target Device field
  3. Select from:
    • Main Device (default) - Uses the flow's assigned device
    • [Device Name] - Any specific connected device

Example: Two-Device Messaging Test​

Here's how to set up a test flow that sends a message from Device 1 and verifies it on Device 2:

Flow Configuration​

StepActionTarget DeviceDescription
1TapDevice 1Open messaging app
2TapDevice 1Select contact
3TypeDevice 1Type "Hello from Device 1"
4TapDevice 1Press send button
5WaitDevice 2Wait 3 seconds for message
6Verify ScreenDevice 2Check message received

Step-by-Step Setup​

Steps 1-4 (Device 1 - Sender):

Step 1: Tap → Target: Device 1 → Element: "Messages" app icon
Step 2: Tap → Target: Device 1 → Element: Contact name
Step 3: Type → Target: Device 1 → Text: "Hello from Device 1"
Step 4: Tap → Target: Device 1 → Element: "Send" button

Steps 5-6 (Device 2 - Receiver):

Step 5: Wait → Target: Device 2 → Duration: 3 seconds
Step 6: Verify Screen → Target: Device 2 → Query: "Is the message 'Hello from Device 1' visible?"

Device Selection in Step Editor​

When editing a step, you'll see the Target Device dropdown:

┌─────────────────────────────────────────────┐
│  Edit Step                                  │
├─────────────────────────────────────────────┤
│  Action:        [Tap           ▼]           │
│  Target Element: [Send button    ]          │
│                                             │
│  Target Device: [Device 1       ▼]          │
│                 ├─ Main Device (default)    │
│                 ├─ Device 1 (Pixel 7)       │
│                 └─ Device 2 (Samsung S23)   │
│                                             │
│  ☑ Cache coordinates for this step          │
└─────────────────────────────────────────────┘

Best Practices​

Timing Considerations​

  • Add Wait steps between device switches to account for network/sync delays
  • Use appropriate wait times when expecting cross-device interactions

Coordinate Caching​

  • Coordinate caches are device-specific
  • Each device maintains its own cache for element positions
  • When switching devices, cached coordinates from one device won't apply to another

Flow Organization​

  • Group related device actions together when possible
  • Add comments or step descriptions indicating which device is targeted
  • Consider creating subflows for device-specific action sequences

Advanced Use Cases​

Parallel Device Verification​

Test that the same app state appears correctly on multiple devices:

Step 1: Tap → Device 1 → Sync button
Step 2: Wait → Any → 5 seconds
Step 3: Verify Screen → Device 1 → "Is data synced?"
Step 4: Verify Screen → Device 2 → "Is data synced?"

Multi-User Scenarios​

Test collaborative features with multiple simulated users:

Step 1: Type → Device 1 (User A) → "Meeting at 3pm"
Step 2: Tap → Device 1 (User A) → Share button
Step 3: Wait → Device 2 (User B) → 3 seconds
Step 4: Verify Screen → Device 2 (User B) → "Is 'Meeting at 3pm' visible?"
Step 5: Tap → Device 2 (User B) → Accept button
Step 6: Verify Screen → Device 1 (User A) → "Is acceptance confirmation shown?"

Cross-Platform Testing​

If you have different Android versions or device types:

Step 1-5: Login flow → Device 1 (Android 13)
Step 6-10: Login flow → Device 2 (Android 14)
Step 11: Verify Screen → Device 1 → "Is home screen displayed?"
Step 12: Verify Screen → Device 2 → "Is home screen displayed?"

Troubleshooting​

Device Not Appearing in Dropdown​

  • Verify the device is connected via adb devices
  • Check that the device appears in the Connected Devices panel
  • Restart ADB server if needed: adb kill-server && adb start-server

Step Executes on Wrong Device​

  • Double-check the Target Device setting for that specific step
  • Ensure you haven't left it as "Main Device (default)" accidentally
  • Verify the correct device is selected, not just connected

Timing Issues Between Devices​

  • Increase wait durations between cross-device actions
  • Network latency can cause sync delays
  • Use Verify Screen steps to confirm state before proceeding

Coordinate Cache Conflicts​

  • Clear coordinate cache when switching device assignments
  • Cached coordinates are device-resolution specific
  • Different devices may need fresh coordinate discovery

Previous: Supported Steps | Next: Coordinate Cache
